What do the colours indicate on my allocations screen?

What do the colours indicate on my allocations screen?


Vehicle Tile Indicators

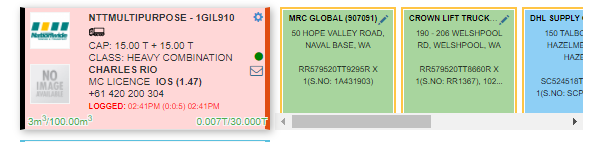

The vertical colour on the left-hand side of the vehicle is linked to the Fleet Colour.

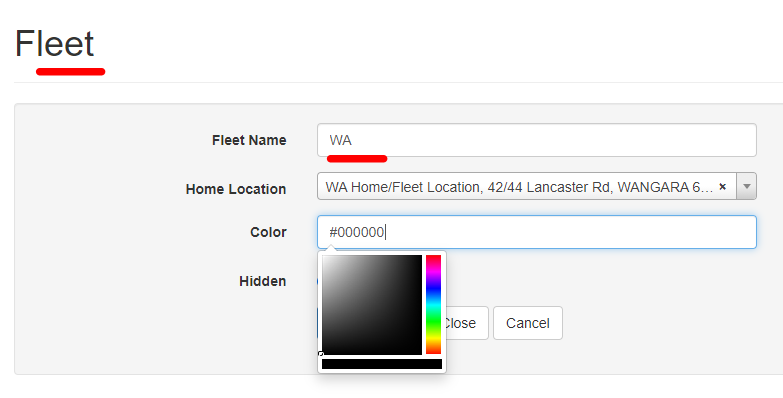

For example, the vehicle fleet is set as WA and the colour of the fleet is set as #000000 (black) so the left-hand vertical bar is coloured black.



The colour on the right-hand side of the vehicle tile is linked to the Vehicle Class Colour.

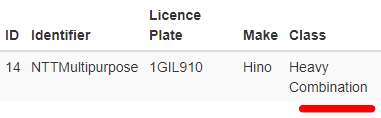

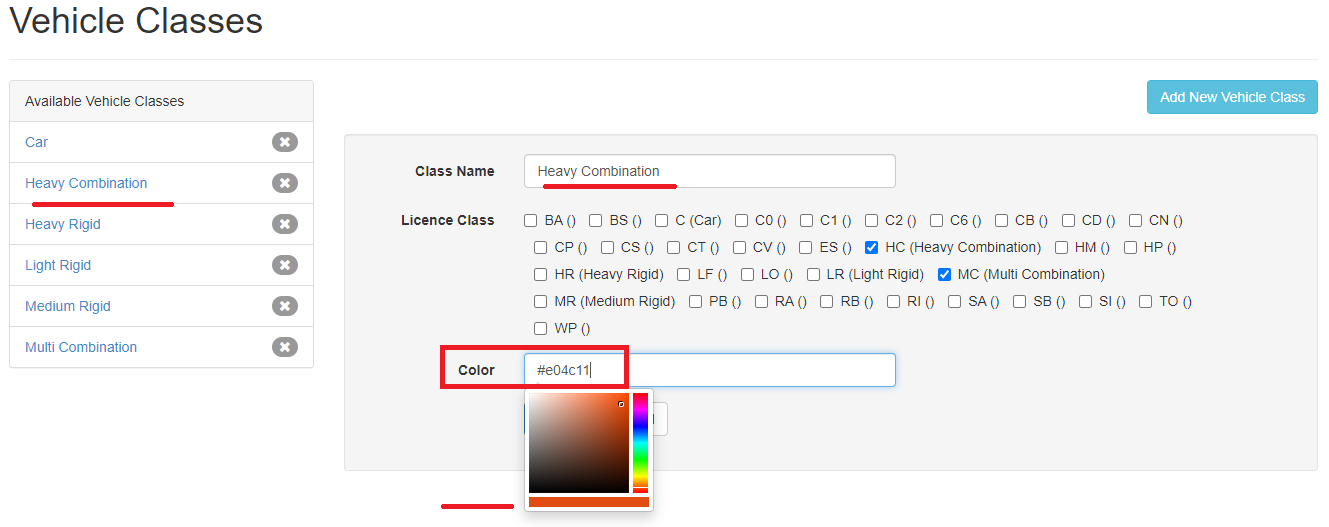

For example, the vehicle class is set as Heavy Combination and its colour is set as E04C11 (Orange).




Job Tile Indicators

The coloured border surrounding a job tile is linked with the Job Delivery Type.

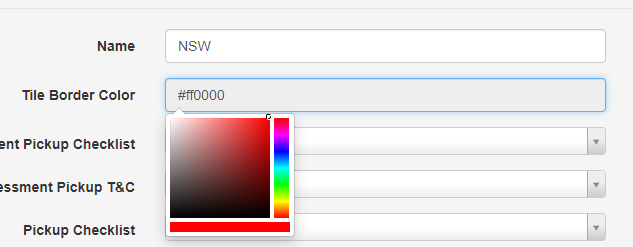

For example, the below Delivery Type is set as NSW.




The colour of this delivery type is set as red, hence why the job tile border appears red.


Vehicle Tiles


The driver/vehicle tiles will change color based on the following few factors:

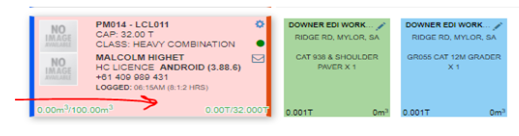

·         If the driver has a lot of loads, and is logged in, but has taken a long time to complete the job it will likely turn red to signify that this driver may not get all his loads completed.

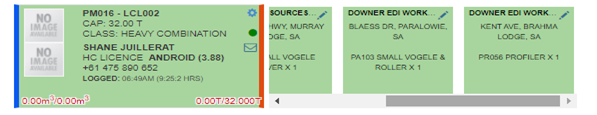

 ·         When a driver/vehicle tile turns green it signifies that they have completed most of his jobs and he is going to complete his loads for this shift.

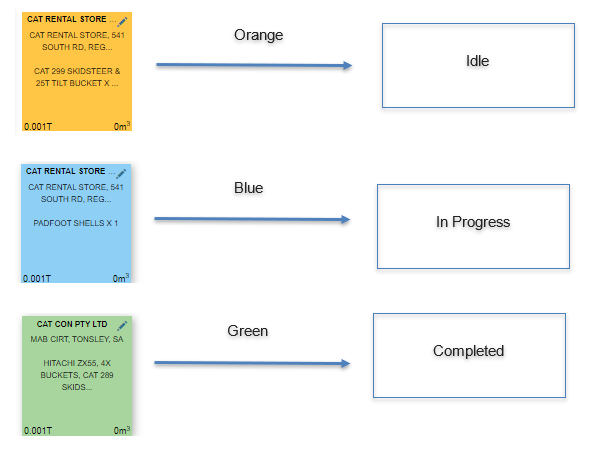

Job Status Colours

​
